Features
• DN 1/4″ – DN 2″
• one-piece body
• soft seated
• floating ball
• FTF dimensions acc. to DIN 3202-M3
• threaded ends acc. to EN 10226-1 / EN ISO 228-1
• reduced bore

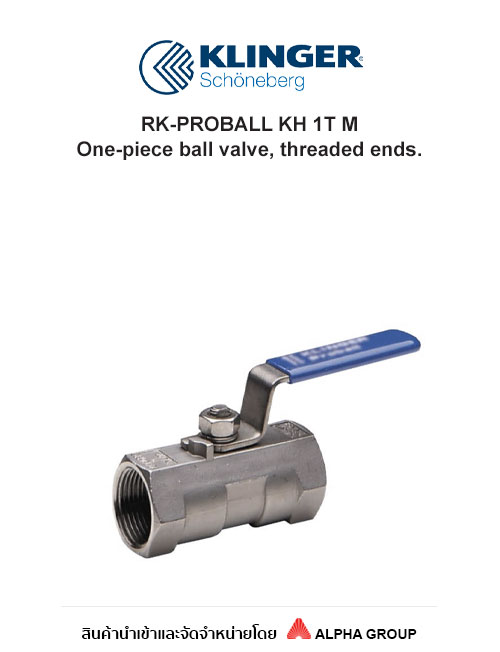

One-piece ball valve, threaded ends acc. to EN 10226-1/EN ISO 228-1, face to face dimensions acc. to DIN 3202-M3, reduced bore, bow-out-proof stem, body material stainless steel (1.4408), free of non ferrous metals, seat KFG, stem packing PTFE, approved by PED, inscrewed part marked with A4, nut marked with A4, high of the lever acc. to “UVV-Großchemie”.
| Brands | |
|---|---|
| Type of Valves | Ball Valve |
| Body Material | Stainless Steel |
| Ball Valve Type | Reduced Bore |
| Design | 1 Piece |
